Bosch 11264EVS Electric Rotary Hammer Parts

Bosch 11264EVS Electric Rotary Hammer Parts Image

Bosch 11264EVS Parts

Download Schematic

Time to buy a new tool?

Bosch 11264EVS

1-5/8 Inch SDS-Max&r...

$584.99

Page-1

Page-2

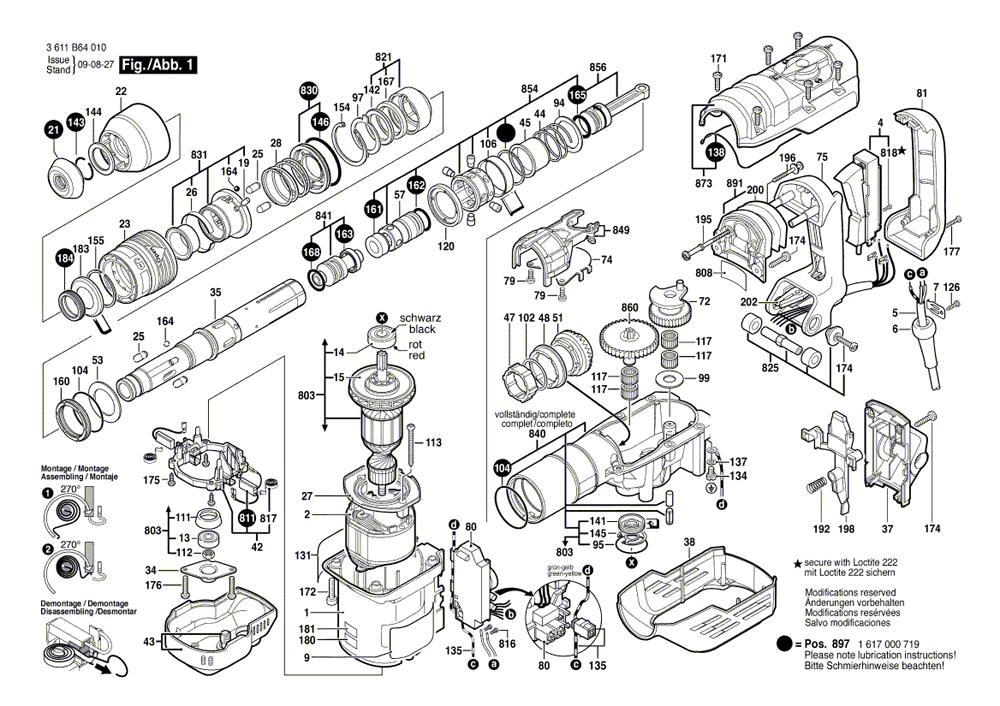

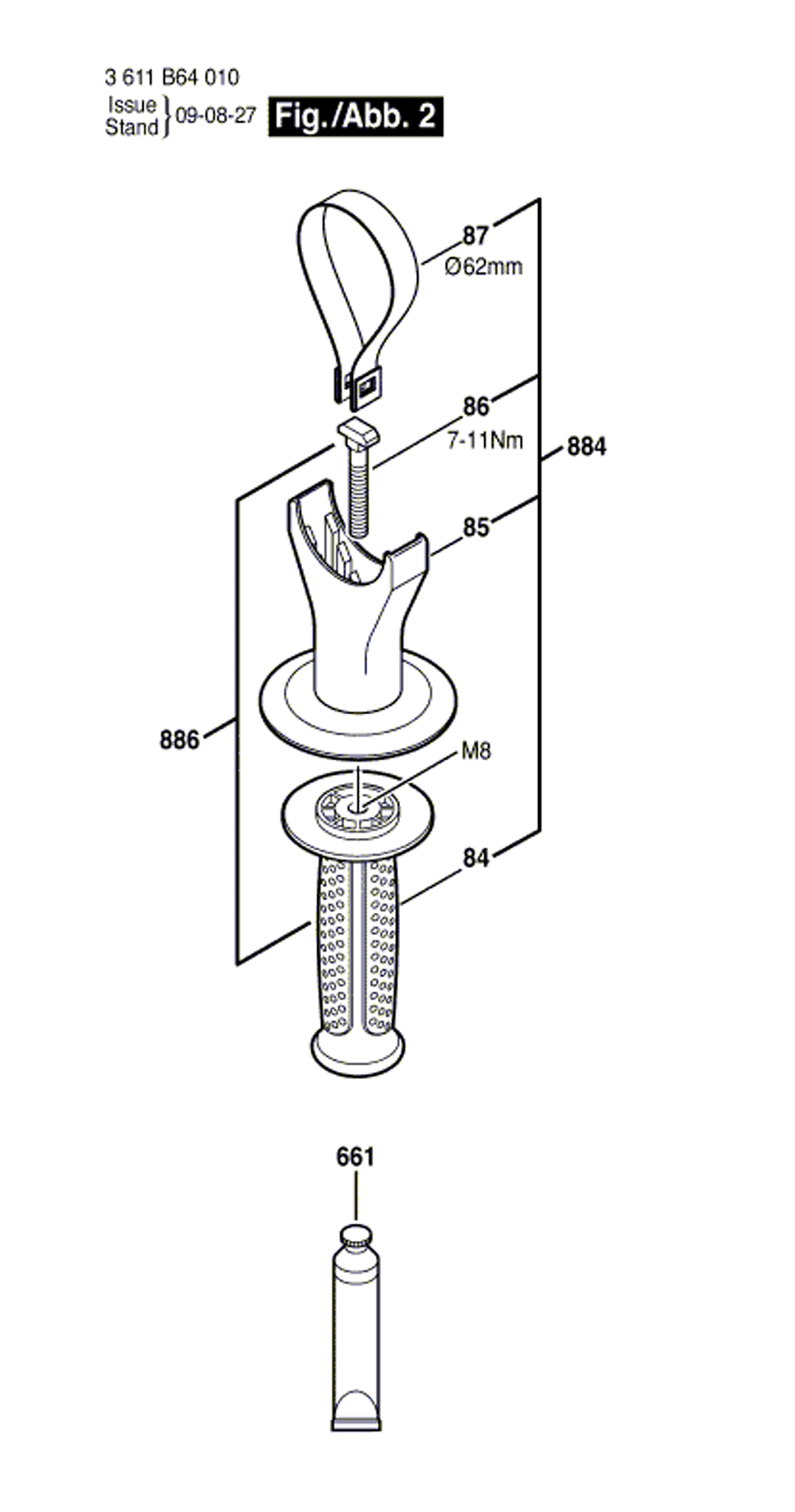

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	1-615-102-161	Motor Housing BLUE	$22.70
2	1-614-220-200	Field 115V	$27.31
4	1-617-200-120	Switch	$24.95
5	1-614-461-035	Power supply cord USA/CDN 3,1m 3 x 2,08mm SJ0W	$29.17
6	1-600-703-035	Grommet	$1.91
7	1-601-302-019	Fastening Clamp	$1.34
9	1-611-110-D61	Manufacturer's Nameplate	$2.79
13	1-610-900-026	Deep-Groove Ball Bearing 8x24x8	$10.27
14	1-610-905-028	Deep-Groove Ball Bearing 12x32x10	$18.08
15	1-616-610-090	Fan	$10.27
19	1-613-200-019	Cylindrical Roller	$1.91
21	1-610-508-057	Protective Cap BLACK	$4.60
22	1-610-591-045	Protection Sleeve BLACK	$5.26
23	1-610-499-069	Guide Sleeve BLACK	$12.80
25	1-612-300-034	Stopping Device	$2.24
26	1-610-224-010	Pressure Spring	$2.79
27	1-610-591-028	Air-Deflector Ring	$1.91
28	1-614-621-008	Compression Spring	$3.17
34	1-610-516-013	Flange	$1.57
35	1-615-806-220	Hammer Pipe	$133.82
37	1-615-500-393	Bearing Pedestal	$6.91
38	1-615-190-159	Covering hood BLUE	$14.23
42	1-614-336-085	Brush Holder	$29.17
43	1-615-500-410	Fan Cover BLACK	$11.58
44	1-614-617-004	Compression Spring	$2.24
45	1-610-499-070	Control Bushing	$15.38
47	1-610-300-064	Gear Sleeve	$6.03
48	1-616-334-012	Clutch Sleeve	$4.00
51	1-616-333-041	Crown Gear	$32.38
53	1-610-290-068	Support Disc	$2.24
57	1-618-710-091	Striker	$22.70
72	1-616-317-085	Eccentric Cog Wheel	$73.20
74	1-611-921-001	Guide Plate	$1.91
75	1-615-132-118	Handle BLUE	$36.72
79	1-613-435-015	Torx Oval-Head Screw M5x12-TORX,T25 SILVER	$1.34
80	1-617-233-048	Speed governor	$65.75
81	1-615-132-088	Handle Cover BLACK	$20.28
84	1-612-025-060	Auxiliary Handle M8 BLACK	$18.08
85	1-618-040-074	Support Clamp	$4.00
86	1613490002	T-HEAD BOLT	$1.91
87	1-611-316-019	Clamping Band Ø 62 MM	$3.17
94	1-610-102-056	Friction Washer	$1.91
95	1-610-210-173	O-Ring 1,5x32 MM	$1.34
97	1-610-031-005	Locking Washer	$1.91
99	1-610-102-059	Support Disc	$1.91
102	1-610-102-057	Shim 0,3 MM	$1.34
	1-610-102-058	Shim 0,2 MM	$1.34
104	1-610-210-160	O-Ring	$1.34
106	1-610-499-073	Retaining snap ring	$5.26
111	1-610-290-064	Bushing	$1.34
112	1-613-300-008	Hex Nut DIN 936-M8x1-8	$1.34
113	1-613-435-009	Tapping Screw ST-4,8x57,5-TORX,T20	$1.34
120	1-610-590-019	Stop Sleeve	$15.38
126	2910211019	TAPPING SCREW	$0.89
131	1-611-110-C71	Manufacturer's Nameplate	$2.79
134	2-910-110-116	Pan head screw DIN 85 AM 4x6-MS	$0.89
135	1-614-431-031	Connecting Cable	$4.60
137	1-610-151-007	Spring Lock Washer	$0.89
138	1-611-015-053	Sealing Frame	$4.60
141	1-610-290-066	Rotary shaft lip seal	$7.90
142	1-610-290-069	Rotary shaft lip seal	$3.17
143	1-614-601-021	Retaining ring DIN 7993-28x2	$2.79
144	1-610-251-006	Supporting Disc	$4.60
145	1-610-119-012	Spring retaining ring	$1.34
146	1-610-210-202	O-Ring	$1.34
154	2-916-660-023	Spring retaining ring DIN 472 52x2MM	$3.17
155	1-614-601-020	Retaining ring	$1.34
160	1-610-290-095	Damping Ring	$9.11
161	1-610-290-094	Damping Ring	$2.24
162	1-610-210-204	O-Ring	$1.91
163	1-610-290-065	Sealing ring	$4.00
164	1-903-230-011	Ball DIN 5401-6 G28	$0.89
165	1-610-210-079	O-Ring 4x22 MM	$2.24
167	1-610-283-033	Rotary shaft lip seal	$5.26
168	1-610-210-144	O-Ring	$1.34
171	1-613-435-016	Torx Oval-Head Screw M5x20-TORX,T25 SILVER	$1.34
172	1-613-435-013	Torx Oval-Head Screw M6x30-TORX,T30 SILVER	$1.34
174	1-613-435-012	Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER	$1.34
175	2-912-401-018	Tapping Screw DIN7981-ST3,9x13-C-Z	$0.89
176	1-613-435-012	Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER	$1.34
177	1-603-435-051	Tapping Screw ST3,9x32 SILVER	$1.34
183	1-610-116-007	Stop Sleeve	$2.79
184	1-610-290-096	Damping Ring	$2.24
192	1-614-611-019	Compression Spring	$1.91
195	1-613-490-015	Torx Oval-Head Screw	$1.34
196	1-613-435-019	Screw and washer assembly	$1.34
198	1-618-900-001	Control Lever	$4.60
200	1-610-284-000	Bellows	$7.90
202	1-611-010-006	Switch Hook	$4.00
661	1615430010	GREASE TUBE	$4.60
803	1-614-011-128	Armature 115V	$116.60
808	1601106035		$1.91
811	1-617-014-144	Carbon-Brush Set	$15.38
816	1-609-271-281	Socket head cap screw	$0.89
817	1614652004	SPIRAL SPRING	$3.17
818	2-910-011-082	Socket head cap screw DIN 84-AM3,5x6-5.8	$0.89
821	1-617-000-A02	Bushing	$20.28
825	1-617-000-706	Bearing Shaft	$10.27
830	1-617-000-717	Supporting Disc	$4.00
831	1-617-000-720	Control Bushing	$32.38
840	1-617-000-A06	Impact Mechanism Housing	$55.35
841	1-617-000-899	Striker Pin	$32.38
849	1-617-000-839	Control Fork	$18.08
854	1-617-000-718	Guide Bushing	$24.95
856	1-617-000-A04	Hammer Piston	$20.28
860	1-617-000-844	Spur Wheel Clutch	$92.70
873	1-617-000-A05	Housing Cover	$55.35
884	1-612-025-055	Auxiliary Handle Ø 62 MM BLACK	$32.38
886	1-617-000-459	Auxiliary Handle M8 BLACK	$11.58
891	1-617-000-A26	Spring Pack	$18.08
897	1-617-000-719	Wear and Tear Part Set	$36.72
