Bosch 11250VSR Electric Rotary Hammer Parts

Bosch 11250VSR Electric Rotary Hammer Parts Image

Bosch 11250VSR Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Bosch 11250VSR
SDS-plus Rotary Hamm...
$180.99
Page-1

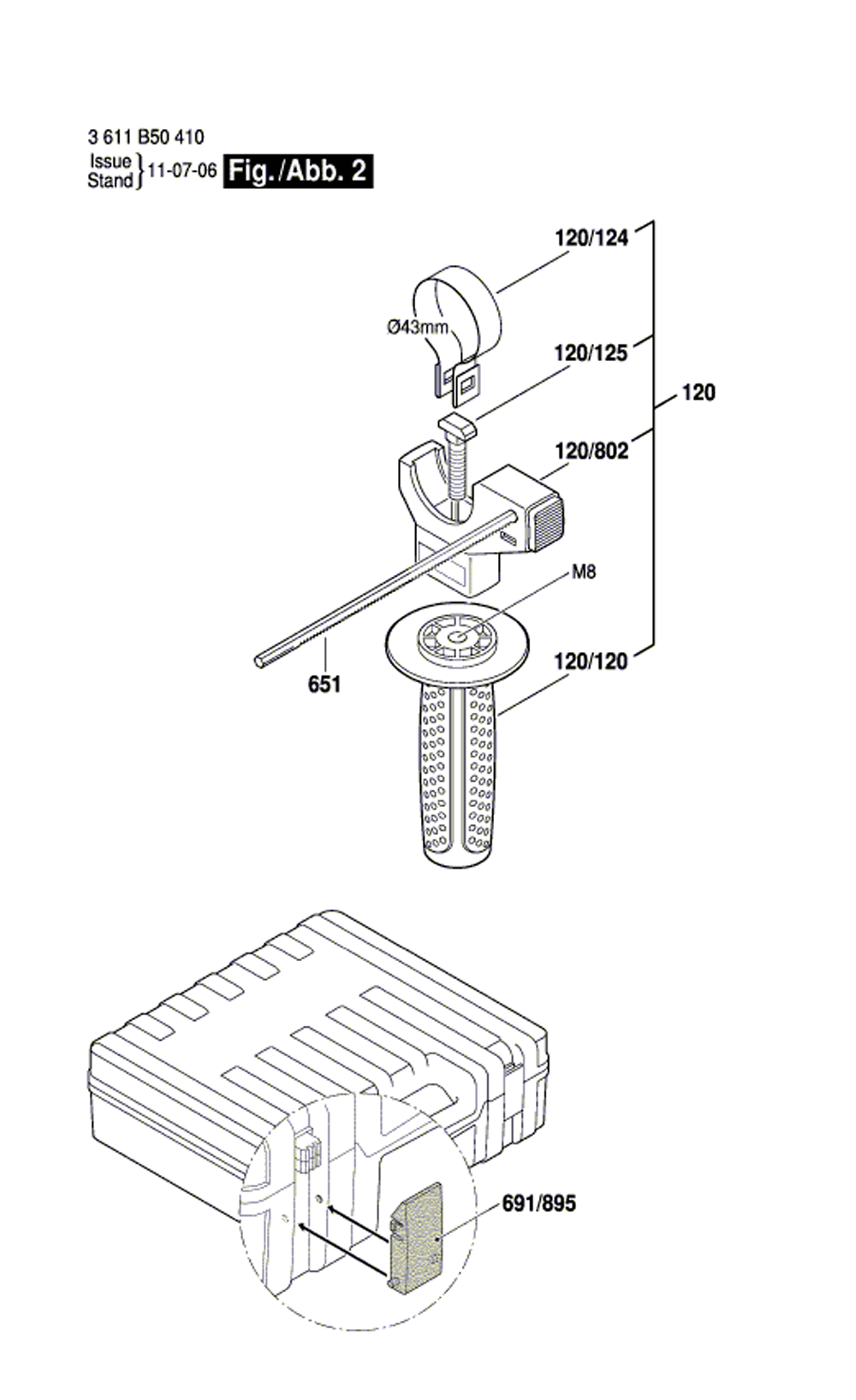

Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

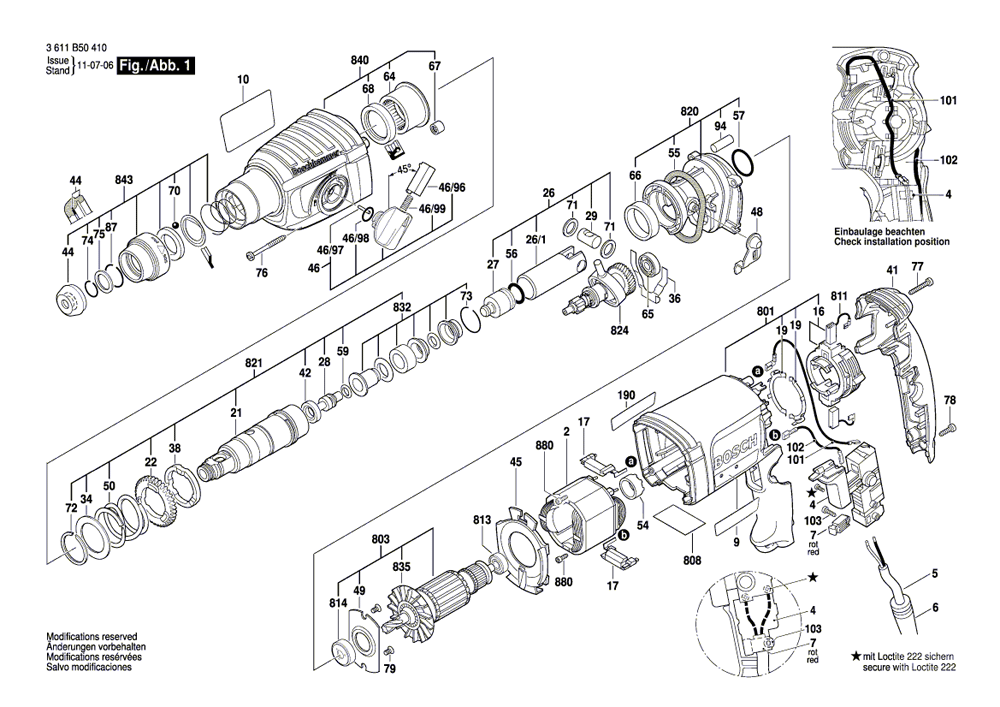

Bosch 11250VSR Electric Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
2 2-604-220-684 Field 110-120V $20.28
4 1-617-200-558 Switch $20.28
6 2600703018 GROMMET $1.91
7 1-601-035-008 Cable Clip $1.34
9 1-611-110-X82 Manufacturer's Nameplate $2.79
10 1-611-110-Y84 Warning Plate $1.91
16 1614336061 BRUSH PLATE $16.59
17 1614465012 ADAPTER MODULE $2.24
19 1611329024 SWITCH CONTACT $1.34
21 1616490070 RATCHET SLEEVE $46.86
22 1616312003 CYLINDRICAL GEAR $6.03
26 1617000534 HAMMER PISTON $18.08
26/1 1618700075 HAMMER PISTON $11.58
27 1618710080 STRIKER $6.03
28 1613124077 STRIKER PIN $6.03
29 1613105012 PISTON PIN $2.79
34 1610190049 SUPPORTING DISC $1.57
36 1601329040 TENSIONING BRACKET $1.34
38 1610190045 CATCH DISK $4.00
41 1615500334 HOUSING COVER $6.91
42 1610422017 THRUST RING $3.17
44 1610508047 PROTECTIVE CAP $1.57
45 1610522012 AIR-DEFLECTOR RING $1.34
46 1-612-026-128 Clamp Handle $4.60
46/96 1612026035 SWITCH BUTTON $1.34
46/97 1903201118 NEEDLE ROLLER $0.89
46/98 1610210046 O-RING $1.34
46/99 1614611006 COMPRESSION SPRING $2.79
48 1601021005 SHIFT PLATE $1.34
49 1-615-700-044 End Shield $1.57
50 1604611037 COMPRESSION SPRING $2.24
54 1610502012 RUBBER BUSHING $0.89
55 1610290226 SEALING RING $2.79
56 1610210187 O-RING $1.34
57 1610210068 O-RING $1.34
59 1610210177 O-RING $1.57
65 1600900037 DEEP-GROOVE BALL BEARING $6.03
66 1610202020 PLAIN BEARING $1.57
68 1610283017 ROTARY SHAFT LIP SEAL $6.03
70 1903230013 BALL $0.89
71 1610101011 SHIM RING $1.34
72 1604601027 RETAINING RING $0.89
73 1614601057 RETAINING RING $0.89
74 1614601027 RETAINING RING $0.89
75 1610101629 RETAINING WASHER $0.89
76 1-613-435-022 Thread-forming tap. Screw $0.89
77 2603490024 TORX OVAL-HEAD SCREW $1.34
78 2603490022 TORX OVAL-HEAD SCREW $0.89
79 1613435023 THREAD-FORMING TAP. SCREW $0.89
87 2916540012 RETAINING RING $1.91
94 1610205010 FELT DISC $0.89
101 1614449014 CONNECTING CABLE $1.57
102 1614449015 CONNECTING CABLE $1.57
103 1-613-435-034 Lens Head Screw 3x10 ST $0.89
120 1-612-025-072 Auxiliary Handle BLACK $14.23
120/120 1612025058 AUXILIARY HANDLE $5.26
120/124 1-611-316-006 Clamping Band Ø 43 MM $1.91
120/125 1613490002 T-HEAD BOLT $1.91
120/802 2-608-040-176 Support Clamp Ø 43 MM $6.91
190 1-611-110-A90 Manufacturer's Nameplate $2.79
691/895 1-615-438-431 Lock for 1 615 438 429 + 1 615 438 430 $5.26
801 1617000537 MOTOR HOUSING $29.17
803 1-617-000-543 Armature With Fan 110-120V $60.55
808 1601106035 $1.91
811 1617000525 CARBON-BRUSH SET $9.11
813 1610905025 DEEP-GROOVE BALL BEARING $6.91
814 1-610-905-006 Deep-Groove Ball Bearing $7.90
820 1617000526 INTERMEDIATE FLANGE $22.70
821 1-617-000-V81 Ratchet Sleeve $65.75
824 1617000527 TOOTHED SHAFT $60.55
832 1617000529 GUIDE SLEEVE $10.27
835 1-616-610-093 Fan $1.57
840 1-617-000-V82 Gear Housing BLACK $36.72
843 1617000531 PROTECTION SLEEVE $9.11
880 2-603-435-015 Recessed-Head Screw DIN 7981-ST3,5x9,5-F $1.34
