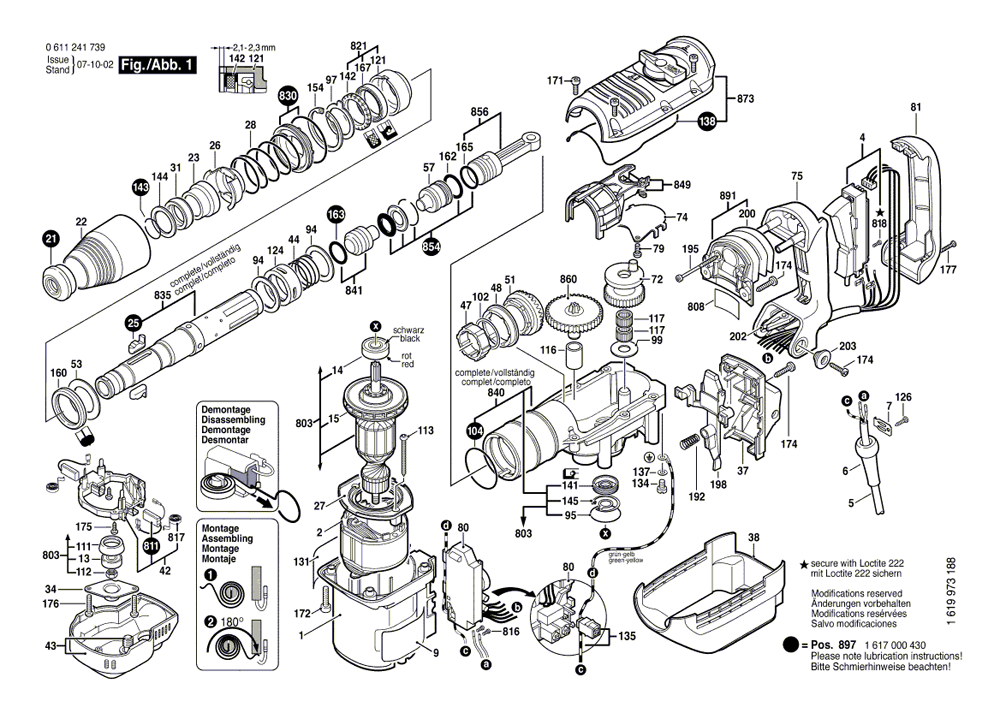

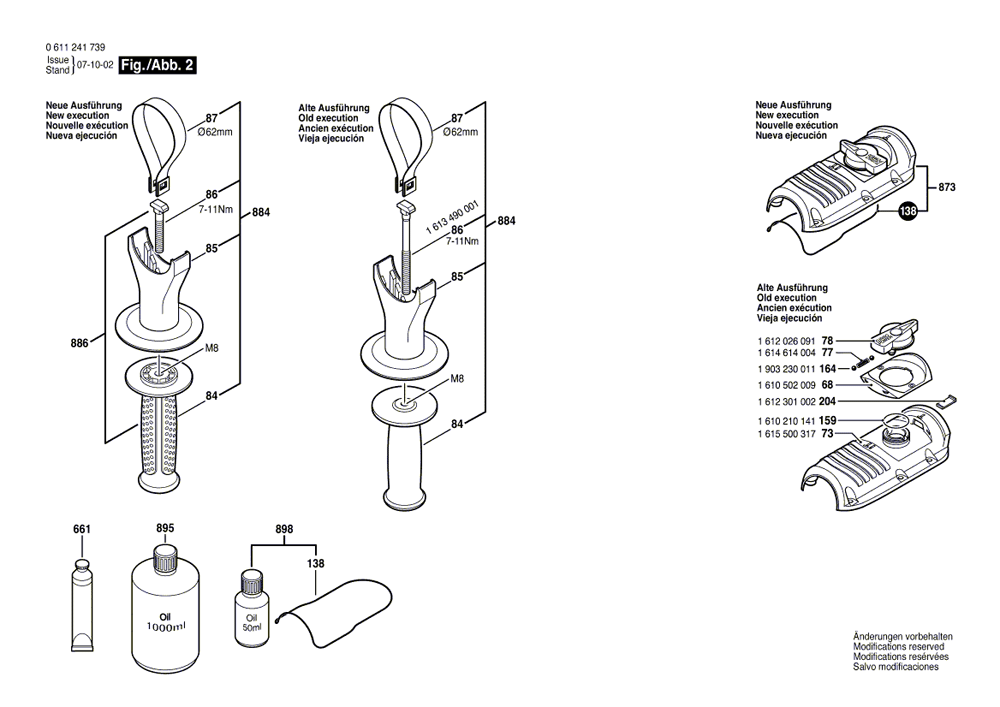

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	1-615-102-155	Motor Housing BLUE	$20.28
2	1-614-220-133	Field 100-115V	$27.31
4	1-617-200-101	Switch	$22.70
5	1-614-461-035	Power supply cord USA/CDN 3,1m 3 x 2,08mm SJ0W	$29.17
6	1-600-703-035	Grommet	$1.91
7	1-601-302-019	Fastening Clamp	$1.34
9	1-611-110-C58	Manufacturer's Nameplate	$2.79
13	1-610-900-026	Deep-Groove Ball Bearing 8x24x8	$10.27
14	1-610-905-028	Deep-Groove Ball Bearing 12x32x10	$18.08
15	1-616-610-090	Fan	$10.27
21	1-610-508-038	Protective Cap	$2.79
22	1-610-591-027	Protection Sleeve	$4.60
23	1-610-520-001	Stop Sleeve	$10.27
25	1-612-300-036	Stopping Device	$7.90
26	1-610-290-076	Indexing Disk	$5.26
27	1-610-591-028	Air-Deflector Ring	$1.91
28	1-614-621-000	Compression Spring	$1.91
31	1-610-290-049	Damping Ring	$2.24
34	1-610-516-013	Flange	$1.57
37	1-615-500-315	Bearing Pedestal	$4.60
38	1-615-190-101	Covering hood	$14.23
42	1-614-336-046	Brush Holder	$29.17
43	1-615-500-410	Fan Cover BLACK	$11.58
44	1-614-617-003	Compression Spring	$1.57
47	1-610-300-064	Gear Sleeve	$6.03
48	1-616-334-012	Clutch Sleeve	$4.00
51	1-616-333-041	Crown Gear	$32.38
53	1-610-290-068	Support Disc	$2.24
57	1-618-710-074	Striker	$22.70
72	1-616-317-064	Eccentric Cog Wheel	$50.33
74	1-611-921-001	Guide Plate	$1.91
75	1-615-132-087	Handle BLUE	$40.54
79	1-613-435-015	Torx Oval-Head Screw M5x12-TORX,T25 SILVER	$1.34
80	1-617-233-033	Speed governor 100-120V	$73.20
81	1-615-132-088	Handle Cover BLACK	$20.28
84	1-612-025-060	Auxiliary Handle M8 BLACK	$18.08
85	1-618-040-074	Support Clamp	$4.00
86	1613490002	T-HEAD BOLT	$1.91
87	1-611-316-019	Clamping Band Ø 62 MM	$3.17
94	1-610-102-056	Friction Washer	$1.91
95	1-610-210-173	O-Ring 1,5x32 MM	$1.34
97	1-610-031-005	Locking Washer	$1.91
99	1-610-102-059	Support Disc	$1.91
102	1-610-102-057	Shim 0,3 MM	$1.34
	1-610-102-058	Shim 0,2 MM	$1.34
104	1-610-210-160	O-Ring	$1.34
111	1-610-290-064	Bushing	$1.34
112	1-613-300-008	Hex Nut DIN 936-M8x1-8	$1.34
113	1-613-435-009	Tapping Screw ST-4,8x57,5-TORX,T20	$1.34
116	1-610-311-017	Inner Ring	$5.26
121	1-610-328-019	Bushing	$14.23
124	1-610-115-001	Collar Sleeve	$4.60
126	2910211019	TAPPING SCREW	$0.89
131	1-611-110-C71	Manufacturer's Nameplate	$2.79
134	2-910-110-116	Pan head screw DIN 85 AM 4x6-MS	$0.89
135	1-614-431-031	Connecting Cable	$4.60
137	2916069088	SPRING WASHER	$1.34
138	1-611-015-053	Sealing Frame	$4.60
141	1-610-290-066	Rotary shaft lip seal	$7.90
142	1-610-290-069	Rotary shaft lip seal	$3.17
143	1-614-601-021	Retaining ring DIN 7993-28x2	$2.79
144	1-610-251-006	Supporting Disc	$4.60
145	1-610-119-012	Spring retaining ring	$1.34
154	2-916-660-023	Spring retaining ring DIN 472 52x2MM	$3.17
160	1-610-210-161	Damping Ring	$2.24
162	1-610-210-163	O-Ring 3,5x22 MM	$1.91
163	1-610-290-065	Sealing ring	$4.00
165	1-610-210-079	O-Ring 4x22 MM	$2.24
167	1-610-283-033	Rotary shaft lip seal	$5.26
171	1-613-435-016	Torx Oval-Head Screw M5x20-TORX,T25 SILVER	$1.34
172	1-613-435-013	Torx Oval-Head Screw M6x30-TORX,T30 SILVER	$1.34
174	1-613-435-012	Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER	$1.34
175	2-912-401-018	Tapping Screw DIN7981-ST3,9x13-C-Z	$0.89
176	1-613-435-012	Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER	$1.34
177	1-603-435-051	Tapping Screw ST3,9x32 SILVER	$1.34
192	1-614-611-019	Compression Spring	$1.91
195	1-613-435-020	Torx Oval-Head Screw	$0.89
198	1-618-900-001	Control Lever	$4.60
200	1-610-284-000	Bellows	$7.90
202	1-611-010-006	Switch Hook	$4.00
203	1-610-322-009	Support Disc SILVER	$1.91
661	1615430010	GREASE TUBE	$4.60
803	1-614-011-107	Armature 110-120V	$133.82
808	1601106035		$1.91
811	1-617-014-144	Carbon-Brush Set	$15.38
816	1-609-271-281	Socket head cap screw	$0.89
817	1614652004	SPIRAL SPRING	$3.17
818	2-910-011-082	Socket head cap screw DIN 84-AM3,5x6-5.8	$0.89
821	1-617-000-842	Bushing	$18.08
830	1-617-000-478	Supporting Disc	$2.79
835	1-617-000-433	Hammer Pipe	$156.61
840	1-617-000-847	Impact Mechanism Housing	$60.55
841	1-617-000-460	Striker Pin	$18.08
849	1-617-000-839	Control Fork	$18.08
854	1-617-000-461	Stop Disc	$10.27
856	1-617-000-843	Hammer Piston	$22.70
860	1-617-000-844	Spur Wheel Clutch	$92.70
873	1-617-000-861	Housing Cover	$36.72
884	1-612-025-055	Auxiliary Handle Ø 62 MM BLACK	$32.38
886	1-617-000-459	Auxiliary Handle M8 BLACK	$11.58
891	1-617-000-853	Spring Pack	$18.08
895	1-615-430-019	Oil Reservoir 1000 ML, Renolin PGW 150	$50.33
897	1-617-000-430	Wear and Tear Part Set	$24.95
898	1-615-437-511	Oil Reservoir 50 ML	$11.58
