Bosch 11236VS Electric Rotary Hammer Parts

Bosch 11236VS Electric Rotary Hammer Parts Image

Bosch 11236VS Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Bosch 11236VS
Rotary Hammer 1-1/8 ...
$313.99
Page-1

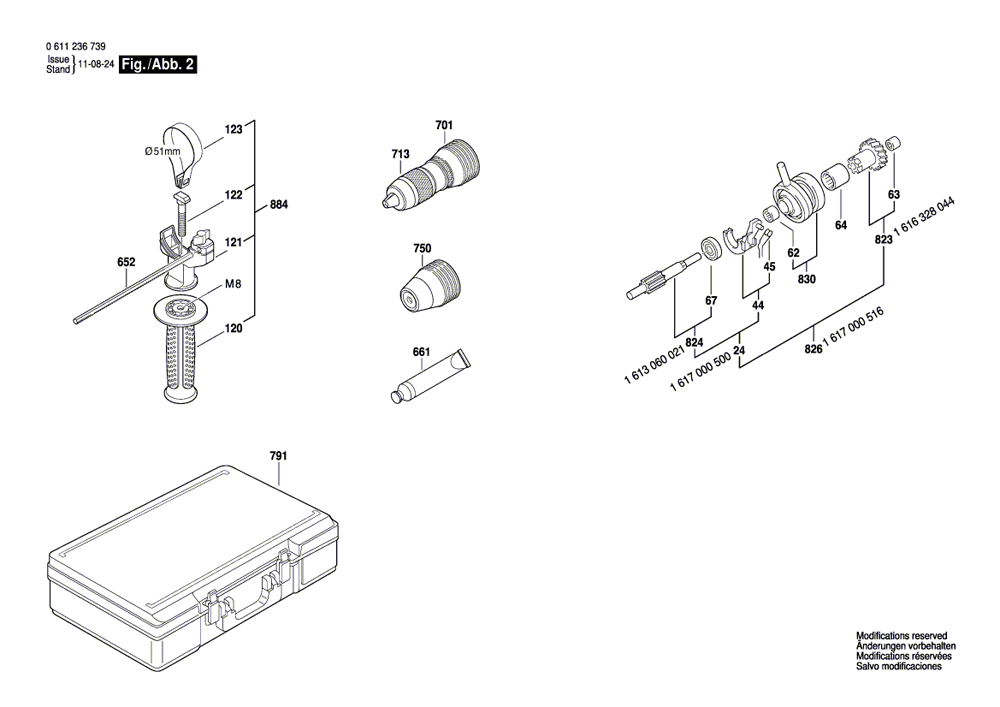

Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

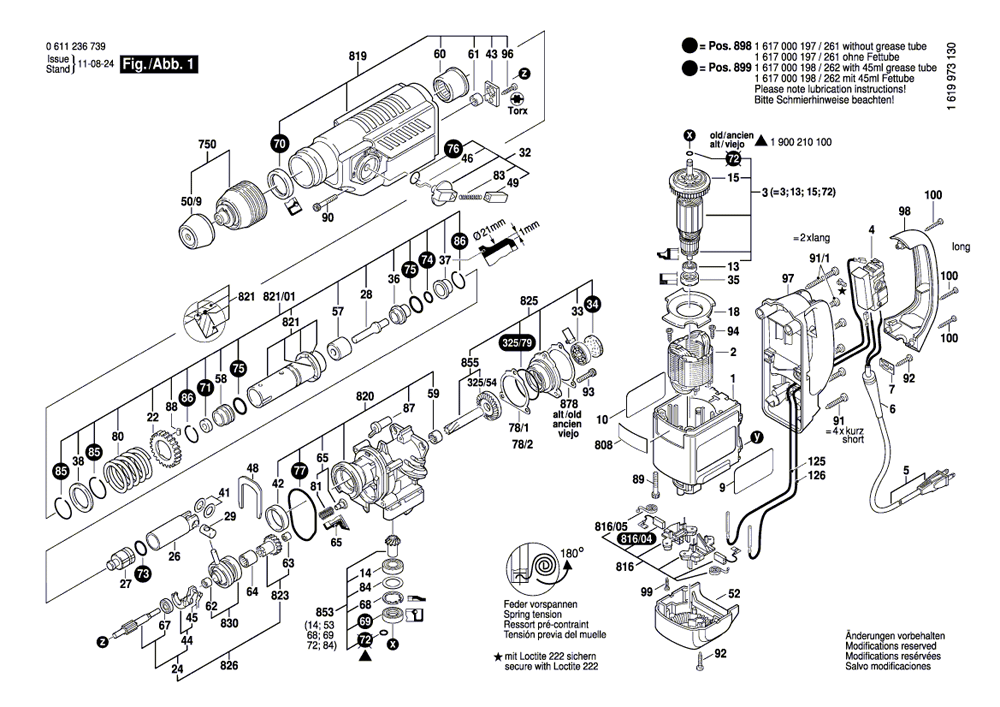

Bosch 11236VS Electric Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 1-615-108-059 Motor Housing BLUE $16.59
2 1-614-220-120 Field 110-120V $32.38
3 1-614-010-211 Armature With Fan 110-120V $92.70
4 2-607-200-578 Switch $24.95
6 2-600-703-019 Cable Sleeve Ø8,7-Ø9,6x76 MM $1.91
7 1601302018 FASTENING CLAMP $1.34
9 2-610-994-195 Manufacturer's Nameplate $2.79
10 2-610-994-196 Warning Plate $2.79
13 1610905025 DEEP-GROOVE BALL BEARING $6.91
14 1-900-900-289 Deep-Groove Ball Bearing DIN 625-6001/C3 $9.11
15 1606610132 FAN $1.57
18 1-610-591-011 Air-Deflector Ring $1.57
22 1-616-317-602 Cylindrical Gear Z=50 $10.27
24 1-617-000-500 Toothed Shaft Z=3/9 $32.38
26 1-618-700-063 Hammer Piston $14.23
27 1-618-710-060 Striker $14.23
28 1-613-124-043 Striker Pin $2.79
29 1613105012 PISTON PIN $2.79
32 1-612-026-037 Clamp Handle BLACK $10.27
33 1-610-190-016 Perforated disk $1.91
34 1-610-005-000 Felt Disc $1.34
35 1-610-206-021 Rubber Ring $1.34
36 1-610-390-016 Guide Bushing $9.11
37 1-610-390-032 Damping Bushing Ø 21 MM $4.00
38 1-610-102-026 Supporting Disc $1.91
41 1610101011 SHIM RING $1.34
42 1-610-202-015 Plain bearing $2.24
43 1-611-098-005 Tab Washer $2.24
44 1-615-820-092 Switching Element $1.91
45 1-614-651-014 Switch Spring $1.34
46 1-614-690-002 Driver Pin $1.34
48 1-611-016-003 Holding Plate $1.57
49 1612026035 SWITCH BUTTON $1.34
50/9 1-610-508-026 Protective Cap L=21,5 MM, SDS-PLUS $2.79
52 1-615-500-298 Cover BLUE $6.03
57 1-610-390-025 Stop Bushing $7.90
58 1-610-390-026 Guide Ring $11.58
59 1-610-910-080 Needle bush $2.79
60 1-610-910-073 Needle-Roller Bearing $9.11
62 1-610-200-020 Plain bearing $1.57
64 1-610-913-010 Needle-Roller Assembly $3.17
65 1-610-591-016 Plain bearing $1.91
67 1-610-905-016 Deep-Groove Ball Bearing $7.90
68 1-610-119-009 Retaining ring $1.34
69 1-610-283-041 Rotary shaft lip seal $5.26
70 1-610-283-023 Rotary shaft lip seal $4.00
71 1-610-290-029 Scraper $1.91
73 1-610-210-121 O-Ring 3x17 MM GREEN $1.91
74 1-610-210-104 O-Ring 3,5x11 MM $1.91
75 1-610-210-159 O-Ring $2.24
76 1610210046 O-RING $1.34
77 1-610-210-106 O-Ring $1.91
78/1 1-610-134-005 Shim 0,1 MM THICK $1.34
78/2 1-610-134-006 Shim 0,2 MM THICK $1.34
80 1-614-634-006 Compression Spring $5.26
81 1-614-611-009 Compression Spring $1.34
83 1614611006 COMPRESSION SPRING $2.79
84 1-610-101-627 Supporting Disc $1.34
85 1-614-601-011 Retaining ring $1.34
86 1-614-601-024 Retaining ring $1.34
87 1-610-390-027 Screw Bushing $1.34
88 1-613-200-007 Roller $1.34
89 2-910-141-168 Hex Socket Head Cap Screw DIN 912-M 5x35-8.8 $3.17
90 2-910-141-168 Hex Socket Head Cap Screw DIN 912-M 5x35-8.8 $3.17
91 2-910-211-036 Tapping Screw DIN 7971-ST4,8x25-F $0.89
91/1 2-910-211-038 Tapping Screw DIN 7971-ST4,8x38-F $1.34
92 2-912-401-019 Tapping Screw DIN7981-ST3,9x16-C-Z $1.57
94 2-603-435-015 Recessed-Head Screw DIN 7981-ST3,5x9,5-F $1.34
96 2-912-401-018 Tapping Screw DIN7981-ST3,9x13-C-Z $0.89
97 1-615-133-031 Handle Cover BLACK $12.80
98 1-615-133-030 Cover BLACK $9.11
100 2-914-211-311 Oval-Head Screw 40 x 35MM $1.34
120 1-612-025-060 Auxiliary Handle M8 BLACK $18.08
121 1-618-040-054 Support Clamp Ø 51x110 MM $4.60
122 1613490002 T-HEAD BOLT $1.91
123 1-611-316-009 Clamping Band Ø 51 MM $3.17
125 1-614-448-035 Connecting Cable L=330 MM WHITE $1.57
126 1-614-448-036 Connecting Cable L=215 MM BLUE $1.57
325/54 1-616-333-029 Crown Gear Z=32 $11.58
325/79 2-600-210-003 O-Ring 40x1,5 MM $1.34
661 1615430010 GREASE TUBE $4.60
791 2-605-438-389 Carrying Case $92.70
808 1601106032 $1.91
816 1-617-000-359 Brush Holder $22.70
816/04 1-617-014-128 Carbon-Brush Set $15.38
816/05 1-614-652-002 Spiral Spring $1.34
819 1-617-000-345 Impact Mechanism Housing BLUE $40.54
820 1-617-000-315 Gear Housing $46.86
821 1-617-000-978 Ratchet Sleeve $29.17
821/01 1-617-000-979 Ratchet Sleeve $73.20
823 1-616-328-044 Gear Sleeve Z=25 $24.95
825 1-615-805-064 Bearing Flange $29.17
826 1-617-000-516 Toothed Shaft Z=3/9 $60.55
830 1-615-819-022 Drive End Shield $55.35
853 1-617-000-196 Pinion Z=15 $36.72
855 1-617-000-982 Jack Shaft Z=9 $20.28
878 1-610-134-008 Plain Washer 0,5 MM THICK $1.91
899 1-617-000-262 Wear and Tear Part Set $27.31
