Bosch 11224VSRC Electric Rotary Hammer Parts

Bosch 11224VSRC Electric Rotary Hammer Parts Image

Bosch 11224VSRC Parts

Download Schematic

Time to buy a new tool?

Bosch 11224VSRC

Rotary Hammer 7/8 I...

$240.99

Page-1

Page-2

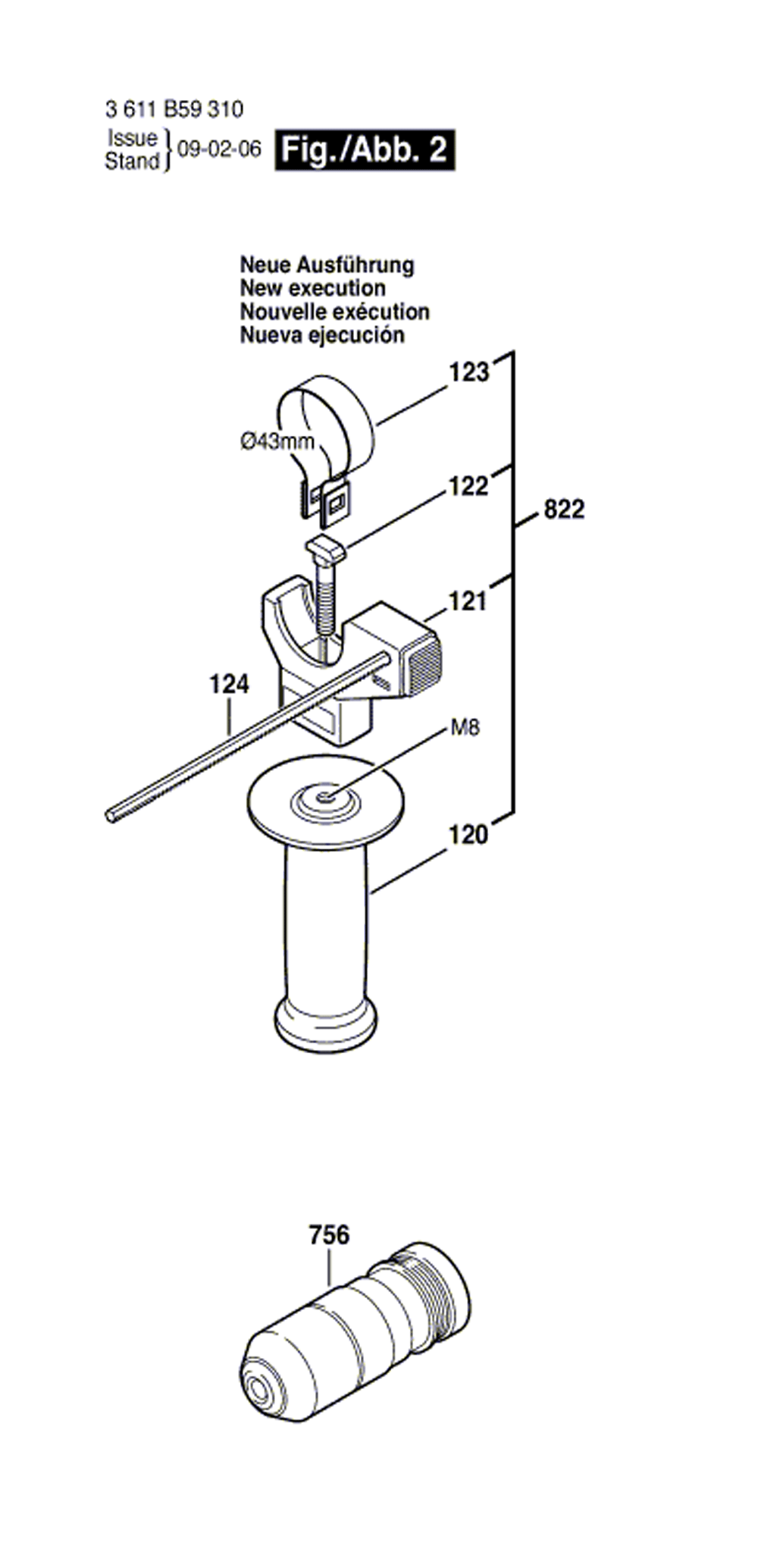

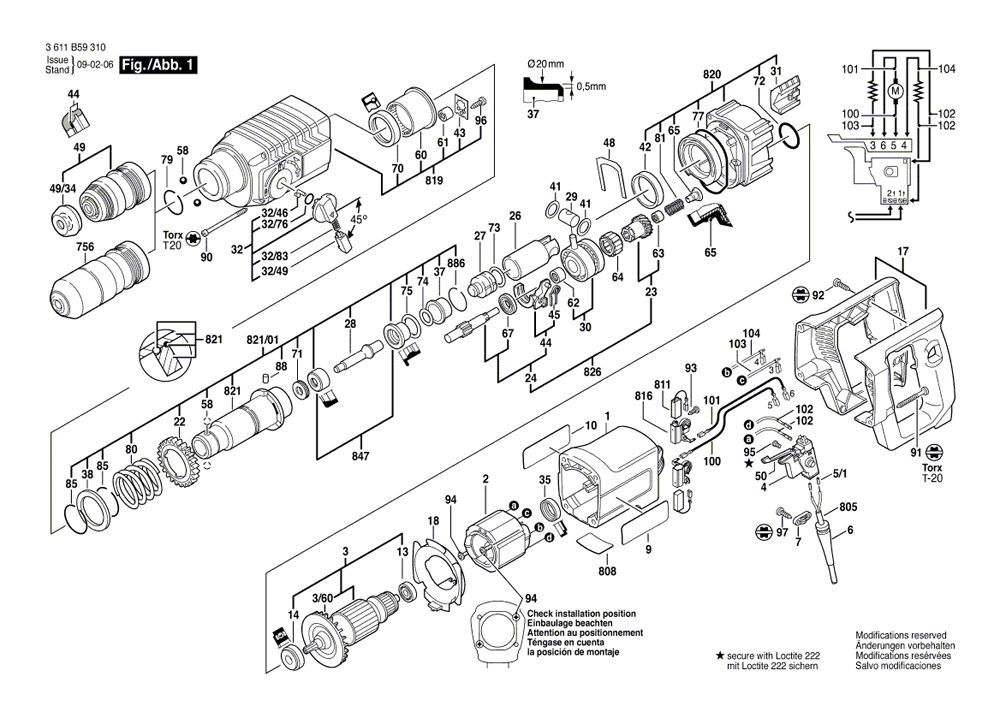

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	1-615-108-060	Motor Housing BLUE	$12.80
3	2-610-003-331	*This part replaces obsolete part #: and 1614010...	$46.86
3/60	1-616-610-072	Fan BLACK	$1.57
4	1-617-200-066	Switch	$22.70
5/1	1900452012	END SPLICE	$0.89
6	2600703018	GROMMET	$1.91
7	2601035001	CABLE CLIP	$1.34
9	1-611-110-Y27	Manufacturer's Nameplate	$2.79
10	2-610-908-994	Warning Plate	$2.79
13	1610905025	DEEP-GROOVE BALL BEARING	$6.91
14	1-610-905-006	Deep-Groove Ball Bearing	$7.90
17	1-615-132-053	Handle BLACK	$15.38
18	1-610-522-009	Air-Deflector Ring	$1.34
22	1-616-317-602	Cylindrical Gear Z=50	$10.27
23	1-616-328-042	Gear Sleeve Z=26/6	$32.38
24	1-617-000-518	Toothed Shaft Z=3/9	$32.38
26	1-618-700-062	Hammer Piston	$12.80
27	1-618-710-057	Striker	$9.11
28	1-613-124-052	Striker Pin	$3.17
29	1613105012	PISTON PIN	$2.79
30	1-615-819-018	Drive End Shield	$83.45
31	1-615-510-003	Protective Grille	$1.91
32	1-612-026-037	Clamp Handle BLACK	$10.27
32/46	1-614-690-002	Driver Pin	$1.34
32/49	1612026035	SWITCH BUTTON	$1.34
32/76	1610210046	O-RING	$1.34
32/83	1614611006	COMPRESSION SPRING	$2.79
35	1-610-206-021	Rubber Ring	$1.34
37	1-610-390-017	Damping Bushing	$4.00
38	1-610-102-026	Supporting Disc	$1.91
41	1610101011	SHIM RING	$1.34
42	1-610-202-015	Plain bearing	$2.24
43	1-611-098-005	Tab Washer	$2.24
44	1-615-820-092	Switching Element	$1.91
45	1-614-651-014	Switch Spring	$1.34
48	1-611-016-003	Holding Plate	$1.57
49	1-617-000-327	Quick-Change Collet Chuck SDS-PLUS	$55.35
49/34	1610508047	PROTECTIVE CAP	$1.57
50	1-617-200-062	Replaces obsolete part #: 2607200338 and 2607200...	$6.03
58	1903230010	BALL	$0.89
60	1-610-910-073	Needle-Roller Bearing	$9.11
62	1-610-910-074	Needle bush	$2.79
64	1-610-913-010	Needle-Roller Assembly	$3.17
65	1-610-591-016	Plain bearing	$1.91
67	1-610-905-016	Deep-Groove Ball Bearing	$7.90
70	1-610-283-019	Shaft Seal	$6.03
71	1-610-290-029	Scraper	$1.91
72	1610210068	O-RING	$1.34
73	1610210187	O-RING	$1.34
74	1-610-210-104	O-Ring 3,5x11 MM	$1.91
75	1-610-210-105	O-Ring 3,5x18 MM	$1.91
77	1-610-210-106	O-Ring	$1.91
79	1-614-601-026	Retaining ring	$1.34
80	1-614-634-005	Compression Spring	$1.34
81	1-614-611-009	Compression Spring	$1.34
85	1-614-601-011	Retaining ring	$1.34
88	1-613-200-007	Roller	$1.34
90	1603435036	TAPPING SCREW	$1.34
91	1-613-435-006	Tapping Screw ST4,8x39/35-C-TORX,T20	$0.89
92	2603490023	LENS HEAD SCREW	$0.89
94	2-603-435-015	Recessed-Head Screw DIN 7981-ST3,5x9,5-F	$1.34
95	2603410001	SOCKET HEAD CAP SCREW	$1.34
96	2-912-401-018	Tapping Screw DIN7981-ST3,9x13-C-Z	$0.89
97	2603490022	TORX OVAL-HEAD SCREW	$0.89
100	1-614-448-033	Connecting Cable L=155 MM BLUE	$1.34
101	1-614-448-032	Connecting Cable L=130 MM BLUE	$1.34
102	1-614-448-028	Connecting Cable L=310 MM BLUE	$1.34
103	1-614-448-030	Connecting Cable L=138 MM BLUE	$1.34
104	1-614-448-031	Connecting Cable L=193 MM BLUE	$1.34
120	1-612-025-019	Auxiliary Handle M8	$4.60
121	2-608-040-176	Support Clamp Ø 43 MM	$6.91
122	1613490002	T-HEAD BOLT	$1.91
123	1-611-316-006	Clamping Band Ø 43 MM	$1.91
756	1-617-000-332	Keyless Chuck	$83.45
805	3604460555	POWER SUPPLY CORD	$9.11
811	1-617-014-127	Carbon-Brush Set	$7.90
816	1-614-336-022	Brush Holder	$2.24
819	1-615-806-093	Gear Housing BLACK	$40.54
820	1-617-000-981	Intermediate Flange	$20.28
821	1-617-000-325	Tool Holding Fixture	$32.38
821/01	1-617-000-326	Tool Holding Fixture	$55.35
822	2-602-025-070	Auxiliary Handle Ø 43 MM	$12.80
826	1-617-000-517	Toothed Shaft Z=3/9	$55.35
847	1-617-000-348	Guide Ring	$12.80
886	1-614-601-024	Retaining ring	$1.34
