Bosch 1030VSR Electric Drill & Driver Parts

Bosch 1030VSR Electric Drill & Driver Parts Image

Bosch 1030VSR Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Bosch 1030VSR
3/8 Inch 0-2100 RPM ...
$144.99
Tool Diagram    (Click image to Zoom in) View larger Image

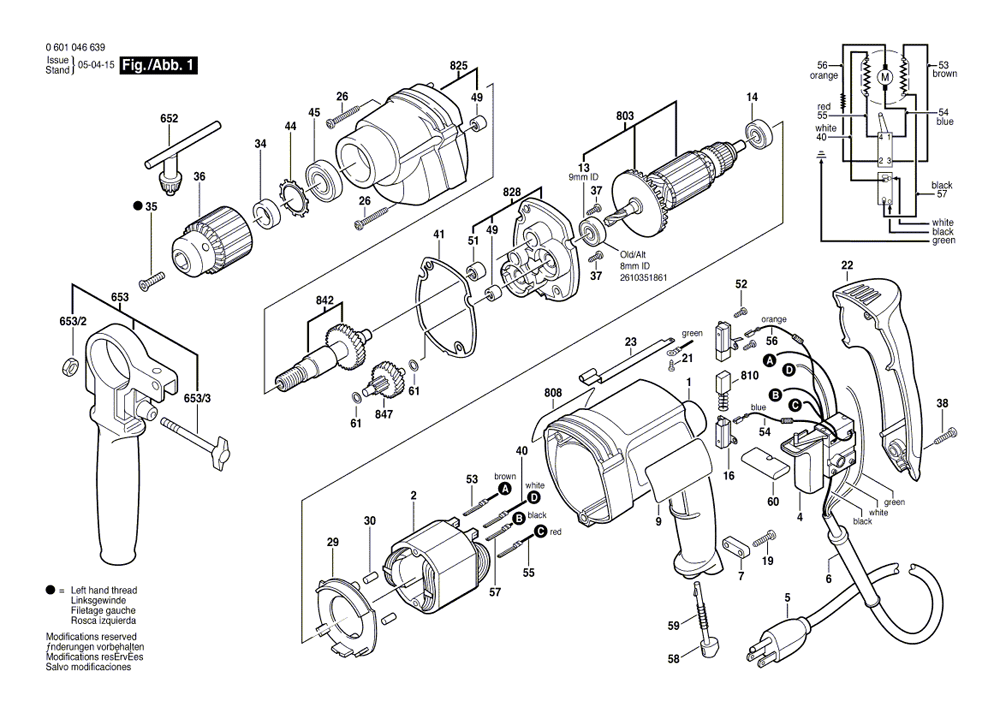

Bosch 1030VSR Electric Drill & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 2-610-998-100 Motor Housing $5.26
2 2604220704 FIELD $18.08
4 2-610-998-107 On-Off Switch $29.17
5 2-610-998-127 Power supply cord USA 2,689m 3 x 0,82mm SJ 18/3 $12.80
6 2600707060 GROMMET $1.34
7 2601035001 CABLE CLIP $1.34
9 2-610-998-418 Manufacturer's Nameplate $2.79
13 2-600-905-107 Deep-Groove Ball Bearing $9.11
14 1900905018 DEEP-GROOVE BALL BEARING $9.11
16 2604337003 BRUSH HOLDER $1.57
19 2603490022 TORX OVAL-HEAD SCREW $0.89
21 2-610-907-525 Cross Recessed-Head Screw $0.89
22 2-610-998-102 Housing Cover $9.11
23 2-610-998-118 Earth Conductor $0.89
26 2603490025 TORX OVAL-HEAD SCREW $0.89
29 2-610-998-115 Air-Deflector Ring $0.89
30 3602391503 RUBBER-INTER CALATION $1.34
34 2-610-998-132 Spacer $0.89
35 2-603-421-009 "Countersunk-Head Screw 1/4"" 28UNF-2A " $1.34
36 2-610-350-947 "Key Chuck 3/8"" " $40.54
37 2603410048 THREAD-FORMING TAP. SCREW $0.89
38 2603490023 LENS HEAD SCREW $0.89
40 2-604-448-287 Connecting Cable $1.34
41 2-610-998-117 Sealing disk $0.89
44 2-610-998-128 Spring retaining ring $0.89
45 2-610-968-044 Ball Bearing $11.58
49 2600914010 NEEDLE BUSH $2.24
51 1600910018 NEEDLE BUSH $2.24
52 2603490017 TORX OVAL-HEAD SCREW $0.89
53 2-604-448-294 Connecting Cable $1.34
54 2-604-448-284 Connecting Cable $1.34
55 2-604-448-286 Connecting Cable $1.34
56 2-604-448-285 Connecting Cable $1.34
57 2-604-448-295 Connecting Cable $1.34
58 2-610-998-114 Locking Lever $0.89
59 2-610-998-116 Compression Spring $0.89
60 2-610-998-113 Reversing Switch $0.89
61 2600100607 SHIM $1.34
652 3-608-571-539 Chuck Wrench $4.60
653 2602025094 AUXILIARY HANDLE $6.03
653/2 2-915-011-007 Hex Nut DIN 934-M6-8-A $0.89
653/3 1-613-480-007 Wing Screw M6x(15)55 $1.34
803 2-604-011-902 Armature $46.86
808 2-601-116-797 Marking Plate $2.79
825 2-610-998-143 Gear Housing $29.17
828 2-610-998-153 Pivot Plate $29.17
842 2-610-907-369 Drive Shaft $22.70
847 2-610-998-148 Toothed Shaft $14.23
